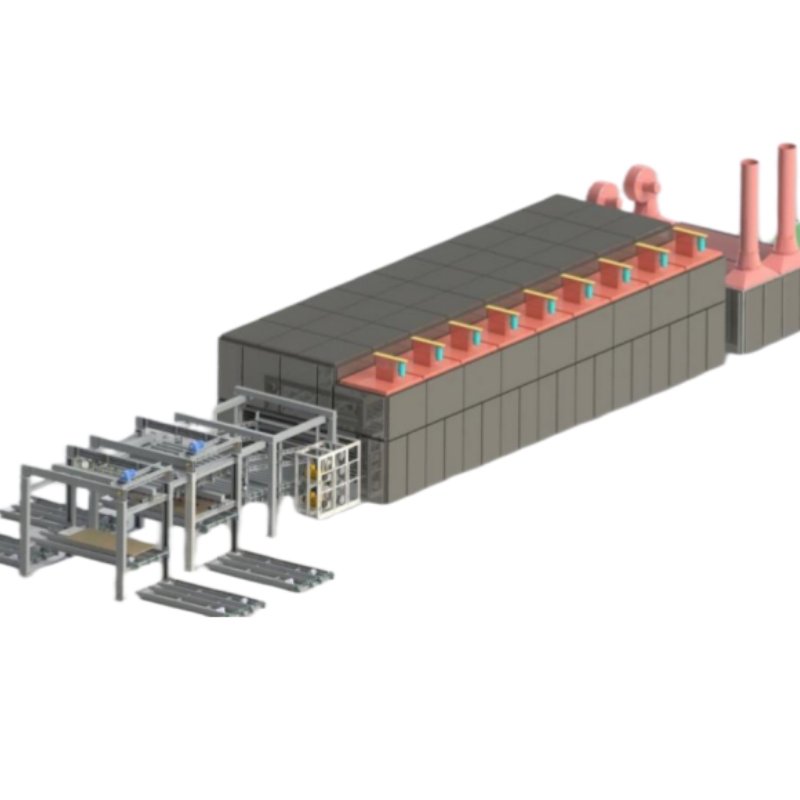

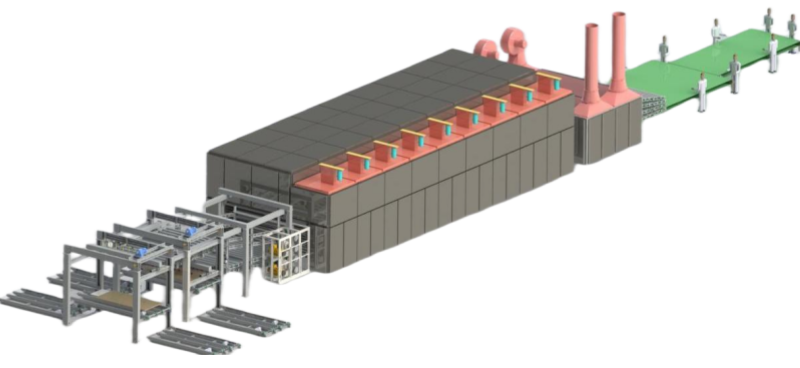

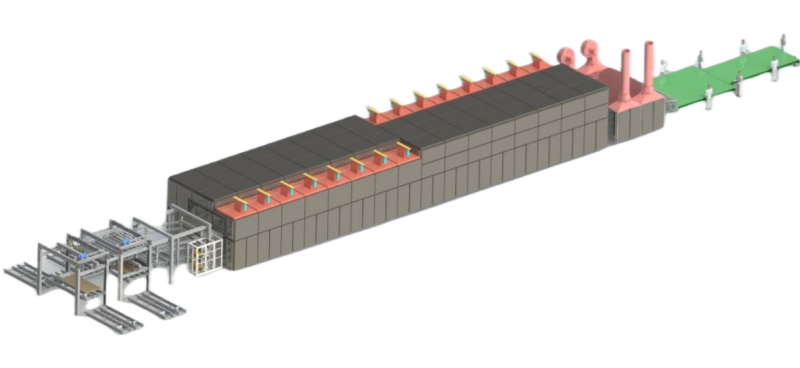

Roller Veneer Dryer 4 Deck Large Capacity
Roller Veneer Dryer 4 Deck Large Capacity Veneer Drying Machine
4 Deck Roller veneer dryer machine Main specifications
| Item | Name | Unit | Specification |
|---|---|---|---|
| 1 | Working width | mm | 2800 |
| 2 | Working deck | layer | 4 |
| 3 | Heating section | mm | 9×2000/12×2000/18×2000 |
| 4 | Cooling section | mm | 2×2000＝4000 |
| 5 | Heating medium | Steam or Oil | |
| 6 | Conveying speed | m/min | 2～15 |
| 7 | Drying Capacity | m3/h | 4.8-16.5 |
| 8 | Total power | kw | 228.2 |
| 9 | Conveyor motor | kw | 7.5kw×4=30kw |
| 10 | Heating fan motor | kw | 15kw×12=180kw |
| 11 | Cooling fan motor | kw | 4kw×2+4kw×2=16kw |
